Sumeng Wang, Silu Chen, Huiqin Li, Shuai Ben, Tingyu Zhao, Rui Zheng, Meilin Wang, Dongying Gu, Lingxiang Liu. Causal genetic regulation of DNA replication on immune microenvironment in colorectal tumorigenesis: Evidenced by an integrated approach of trans-omics and GWAS[J]. The Journal of Biomedical Research, 2024, 38(1): 37-50. DOI: 10.7555/JBR.37.20230081
Citation: Sumeng Wang, Silu Chen, Huiqin Li, Shuai Ben, Tingyu Zhao, Rui Zheng, Meilin Wang, Dongying Gu, Lingxiang Liu. Causal genetic regulation of DNA replication on immune microenvironment in colorectal tumorigenesis: Evidenced by an integrated approach of trans-omics and GWAS[J]. The Journal of Biomedical Research, 2024, 38(1): 37-50. DOI: 10.7555/JBR.37.20230081

Causal genetic regulation of DNA replication on immune microenvironment in colorectal tumorigenesis: Evidenced by an integrated approach of trans-omics and GWAS

More Information
  • Corresponding author:

    Dongying Gu, Department of Oncology, Nanjing First Hospital, Nanjing Medical University, 68 Changle Road, Nanjing, Jiangsu 210006, China. E-mail: dygu@njmu.edu.cn

    Lingxiang Liu, Department of Oncology, the First Affiliated Hospital of Nanjing Medical University, 300 Guangzhou Road, Nanjing, Jiangsu 210029, China. E-mail: llxlau@163.com

  • The authors contributed equally.

  • Received Date: April 06, 2023
  • Revised Date: May 25, 2023
  • Accepted Date: May 27, 2023
  • Available Online: June 02, 2023
  • Published Date: December 17, 2023
  • The interplay between DNA replication stress and immune microenvironment alterations is known to play a crucial role in colorectal tumorigenesis, but a comprehensive understanding of their association with and relevant biomarkers involved in colorectal tumorigenesis is lacking. To address this gap, we conducted a study aiming to investigate this association and identify relevant biomarkers. We analyzed transcriptomic and proteomic profiles of 904 colorectal tumor tissues and 342 normal tissues to examine pathway enrichment, biological activity, and the immune microenvironment. Additionally, we evaluated genetic effects of single variants and genes on colorectal cancer susceptibility using data from genome-wide association studies (GWASs) involving both East Asian (7062 cases and 195745 controls) and European (24476 cases and 23073 controls) populations. We employed mediation analysis to infer the causal pathway, and applied multiplex immunofluorescence to visualize colocalized biomarkers in colorectal tumors and immune cells. Our findings revealed that both DNA replication activity and the flap structure-specific endonuclease 1 (FEN1) gene were significantly enriched in colorectal tumor tissues, compared with normal tissues. Moreover, a genetic variant rs4246215 G>T in FEN1 was associated with a decreased risk of colorectal cancer (odds ratio = 0.94, 95% confidence interval: 0.90–0.97, Pmeta = 4.70 × 10−9). Importantly, we identified basophils and eosinophils that both exhibited a significantly decreased infiltration in colorectal tumors, and were regulated by rs4246215 through causal pathways involving both FEN1 and DNA replication. In conclusion, this trans-omics incorporating GWAS data provides insights into a plausible pathway connecting DNA replication and immunity, expanding biological knowledge of colorectal tumorigenesis and therapeutic targets.

  • Colorectal cancer is among the top ten cancer types globally[1], ranking the fourth in terms of incidence, and the second in terms of mortality in the United States as of 2022[2]. Both sporadic and hereditary forms of colorectal cancer arise from complex factors, such as dietary and environmental hazard exposure, as well as germline mutations (accounting for up to 6%–10% of all causes)[34]. A complete and accurate DNA replication is not only crucial for genomic stability but also a vulnerable cellular process that can initiate colorectal cancer and other cancers[56].

    The tumor immune microenvironment is a complex and dynamic entity that comprises various innate and adaptive immune cells, stromal cells, and extracellular matrix components[7]. It is noteworthy to mention that immune cells can exert either anti-cancer or pro-tumor effects through their interactions with tumor cells, and the spatial correlation between them can be investigated by multiplex immunofluorescence[810]. Although immunotherapy targeting immune cell receptors or ligands, such as programmed death-1, has revolutionized cancer treatment, the emergence of drug resistance remains an inevitable challenge[11].

    Recent advances in high-throughput technologies, including genomics, transcriptomics, epigenomics, and proteomics, have facilitated a comprehensive understanding of biological systems at multiple levels[12]. The integration of different omics approaches is a promising strategy that may facilitate a more detailed molecular understanding of health and disease[1314], helping in biomarker identification to clarify disease etiology and guide therapeutic development[1517].

    In the current study, we performed integrated analyses of genomic, transcriptomic, and proteomic profiles to explore potential causal genetic loci, susceptibility genes, and biological pathways associated with colorectal cancer risk, as well as the association between DNA replication and immunity.

    The Nanjing Colorectal Cancer Cohort dataset, which is a long-term follow-up clinical cohort, provides transcriptomic data for 79 pairs of colorectal tumor tissues and adjacent normal tissues, as well as proteomic data for 25 paired tumors and adjacent normal tissues. The characteristics of participants and the recruitment protocols have been described previously[1820]. Demographic characteristics are shown in Supplementary Table 1 (available online).

    A public dataset with information on 644 tumor tissues and 51 normal tissues was obtained from TCGA. Another three independent colorectal cancer datasets were obtained from GEO, which include GSE74602 (30 paired normal and tumor samples, Southeast Asian populations), GSE106582 (77 tumors and 117 mucosa tissues, European populations), and GSE117606 (74 tumors and 65 adjacent normal tissues, European populations).

    The dataset of GWAS summary statistics of East Asian populations covered 7062 colorectal cancer cases and 195745 controls, with 8678297 single nucleotide polymorphisms (SNPs) (Supplementary Table 1). Details regarding genotyping and imputation were described elsewhere[21]. The qualified GWAS summary data were selected according to the following inclusion criteria: (1) call rate > 95%; (2) P-value for Hardy-Weinberg equilibrium (HWE) > 1 × 10−6; (3) minor allele frequency (MAF) > 0.05; and (4) R2 (imputation quality measure by Minimac3) > 0.80.

    The GWAS summary data of European populations combined a sample size of 24476 cases and 23073 controls, with 6709910 SNPs. Detailed information about GECCO can be found in previous studies[18,2224]. Demographic characteristics are shown in Supplementary Table 1. The inclusion criteria for qualified GWAS summary data were as follows: (1) call rate > 95%; (2) MAF > 0.05; (3) PHWE > 1×10−6; and (4) imputation accuracy R2 > 0.30.

    Gene set enrichment analysis (GSEA)[25] and gene set variation analysis (GSVA)[26] were performed at the RNA and protein levels, based on the pathway in the Kyoto Encyclopedia of Genes and Genomes (KEGG) in Molecular Signatures Databases (MSigDB, http://www.gsea-msigdb.org/gsea/msigdb/index.jsp) via the R packages clusterProfiler[27] and GSVA, respectively. We reserved enriched pathways from GSEA with a false discovery rate threshold of 0.05 for further analysis. The difference in pathway activity between tumor and normal samples calculated by GSVA was estimated by the R package limma[28]. We selected pathways from GSVA with an adjusted P-value cutoff of 0.05 and the absolute value of log2(fold change, FC) > 0.2[29]. To facilitate subsequent analysis, the resulting pathways were driven by intersecting the outcomes of GSEA and GSVA.

    Gene and gene-set analyses were performed by Multi-marker Analysis of GenoMic Annotation (MAGMA)[30] using genome-wide summary statistics from East Asian and European populations. In the gene-based analysis, SNPs located between transcription start and stop sites of a gene were annotated to the gene, based on dbSNP version 135 SNP locations and NCBI 37.3 gene definitions, to assess the joint association of all SNPs in the gene with the phenotype. Similarly, in the gene-set analysis, individual genes were aggregated into biological pathways or cellular functions underlying MSigDB, showing the potential genetic etiology of phenotypes. The pathways met the criteria of having significant associations, as determined by a Bonferroni-adjusted P-value of less than 0.05, were selected along with their corresponding genes and SNPs. Comprehensive information regarding these pathways, genes, and SNPs can be found in Supplementary Tables 2 and 3 (available online).

    The tumor immune microenvironment was assessed by CIBERSORT[31] and xCell[32] algorithms using transcriptomic data. CIBERSORT (http://cibersort.stanford.edu/) provides an estimation of the abundance of immune cell types associated with the LM22 gene signature matrix. xCell (http://xCell.ucsf.edu/), a gene signature-based method, enables cell type enrichment analysis from gene expression data for 64 kinds of cell types, including innate and adaptive immune cells, hematopoietic progenitor cells, epithelial cells, and extracellular matrix cells. Detailed immune cell types are shown in Supplementary Table 4 (available online).

    Functional Annotation of Variants-Online Resource (FAVOR, http://favor.genohub.org/), a method providing functional annotations for 13 major categories, was used to annotate the selected SNPs and plot genetic functions. SAIGE UKB (https://pheweb.org/UKB-SAIGE/) supplied phenome-wide association study (PheWAS) summary statistics of the selected SNPs, which included 1403 ICD-based traits[33]. Region plots[34] were generated by LocusZoom. Genotype and expression data (transcript and protein levels) were merged to perform expression quantitative trait loci (eQTL) in colorectal tumor and normal tissues in a linear regression model[35]. Details on genotype data collection, imputation, and processing have been published before[19,3637].

    The associations between the candidate variant and immune features underlying the causal pathway, mediated by gene expression/pathway activity, were assessed based on four scenarios: (1) merging all associations between genetic variants and immunity (βc); (2) merging all associations between genetic variants and gene expression/pathway activity (βa); (3) merging all associations between gene expression/pathway activity and immunity (βb); and (4) causal inference analysis. The indirect effect of genetic variants on immunity mediated by gene expression/pathway activity was estimated using the equation βindirect=βa × βb. The statistical P-value for indirect effects was determined using bootstrapping method[38] via the R package mediation[39]. The correlation between flap structure-specific endonuclease 1 (FEN1) expression/pathway activity and immunity was analyzed by Spearman correlation underlying the R package psych[40], and meta-analysis was performed via the R package metafor[41].

    Multiplex immunofluorescence staining was performed at Servicebio Technology Co., Ltd. (Wuhan, China), and a multiplexed tyramide signal amplification method was used on 4 μm sections of the tissue microarray (TMA) containing 30 pairs of colorectal tumors and adjacent normal tissues from the Nanjing cohort. The details of TMA were reported previously[22]. After deparaffinization, antigen retrieval, and serum blocking, the TMA was sequentially stained with the primary antibodies anti-CD3 (GB13440, Servicebio), anti-CD45 (GB113885, Servicebio), anti-CD22 (66103-1-IG, Proteintech, Rosemont, IL, USA) and anti-FEN1 (14768-1-AP, Proteintech), followed by the appropriate secondary antibodies conjugated with horseradish peroxidase (HRP) and tyramine signal amplification (TSA) visualization. DAPI (4′,6-diamidino-2-phenylindole) was finally added to stain nuclei until all four markers were labeled. Antibody details are shown in Supplementary Table 5 (available online). The slide was scanned with the Pannoramic MIDI (3DHISTECH, Hungary). Multispectral images were evaluated using the HALO Image Analysis Platform (Version 3.0.311.314, Indica, US). Basophils (CD22+), eosinophils (CD45+), T cells (CD3+) and FEN1-positive cells were quantified, and their average intensity in TMA was calculated.

    All statistical analyses were performed using R software (version 4.0.5). The normality of the variables was assessed using the Shapiro-Wilk test. The Chi-squared test, Fisher's exact test, Student's t-test, and Wilcoxon test were used as appropriate for the respective variables. Correlations between variables were assessed using either Spearman's or Pearson's correlation, depending on the normal distribution of the data. The false discovery rate correction was used in the RNA-seq analysis to manage false positives in multiple tests, efficiently pinpointing genes with significantly differential expression levels. In the SNP analysis with lower-dimensional genotype data, Bonferroni correction was applied to adjust the significance level for the number of comparisons conducted, reducing the likelihood of false discoveries. Bonferroni correction provides the most conservative results, emphasizing highly significant associations. A P-value less than 0.05, with a two-tailed test, was considered statistically significant. To perform the meta-analysis of the summary-level GWAS results for East Asian and European populations, we used METAL software, with the fixed-effects modeling and inverse-variance weighting[42].

    The flowchart of the current study is shown in Fig. 1. We first analyzed the differentially enriched pathways between colorectal tumors and adjacient normal tissues using the GSEA method. Although some pathways were specifically enriched in individual datasets, 38 pathways were consistently enriched in colorectal tumors (Fig. 2A, Supplementary Table 6 [available online]). We then used GSVA to estimate the pathway activity (Supplementary Fig. 1A1E, available online) and found four pathways differentially enriched between colorectal tumors and adjacient normal tissues across all datasets (i.e., DNA replication, mismatch repair, proteasome, and RNA polymerase; Fig. 2B). Remarkably, these four pathways were the same as those identified by GSEA (Fig. 2C). Moreover, we performed GSEA (Supplementary Table 7, available online) and GSVA (Supplementary Fig. 1F, available online) on the Nanjing cohort proteome profiles, revealing that the four pathways enriched at the RNA level were also enriched at the protein level, thus being selected for further investigation (Fig. 2D).

    Figure  1.  Flow chart of the study design.
    Omics data and methods used in the current study are shown in cylinders and orange boxes, respectively. The key results of the study are displayed in red boxes. Four distinct pathways were derived by intersecting the results obtained from GSEA and GSVA using transcriptomic level and proteomic level datasets. Subsequently, MAGMA analysis was employed with genome-wide summary statistics to identify pathways that exhibited statistical significance. Additionally, a specific gene of interest, FEN1, and its corresponding SNP (rs4246215) were identified. Notably, the tumor immune microenvironment was also depicted, providing valuable insights into the interplay between genetic factors and the immune response within the context of tumorigenesis. To further explore causal associations, mediation analysis, and multiplex immunofluorescence were conducted, enabling a comprehensive understanding of the underlying mechanisms. Abbreviations: BBJ, Biobank Japan; GECCO, Genetics and Epidemiology of Colorectal Cancer Consortium; GEO, Gene Expression Omnibus; TCGA, The Cancer Genome Atlas; GSEA, gene set enrichment analysis; MAGMA, Multi-marker Analysis of GenoMic Annotation; SNPs, single nucleotide polymorphisms.
    Figure  2.  Pathway enrichment analysis and activity estimation at both the RNA and protein levels.
    A: Significant pathways underlying the GSEA algorithm across five datasets at the RNA level. B: Significant pathways underlying the GSVA algorithm across five datasets at the RNA level. C: Four significant pathways were yielded from intersections between GSEA and GSVA analyses across five datasets. D: Differential activity of four representative pathways between colorectal tumors and normal tissues of the Nanjing cohort at the RNA level (top) and the protein level (bottom). Abbreviations: GSEA, gene set enrichment analysis; GSVA, gene set variation analysis; TCGA, The Cancer Genome Atlas.

    We then assessed genomic information on colorectal cancer susceptibility to determine key genes in the four candidate pathways. Interestingly, FEN1, one of 108 genes in the four selected pathways (specifically the DNA replication pathway), was significantly associated with colorectal cancer susceptibility in East Asian populations (PBonferroni = 0.025; Fig. 3A and Supplementary Table 2 [available online]), and was subsequently validated in European populations (P = 4.41 × 10−4; Supplementary Table 2). Variant-to-gene annotation (Table 1, Fig. 3B) revealed that only rs4246215 at 11q12.2 in FEN1 was associated with colorectal cancer susceptibility in both East Asian (OR = 0.92, 95% CI: 0.87–0.95, P = 1.46 × 10−6) and European (OR = 0.95, 95% CI: 0.92–0.98, P = 4.41 × 10−4) populations and reached genome-wide significance (OR = 0.94, 95% CI: 0.90–0.97, P = 4.70 × 10−9) without heterogeneity (Phet = 0.27, I2 = 0.20). However, no pathway passed the significance threshold of P < 0.05 (Supplementary Table 3, available online).

    Figure  3.  Genetic effects on colorectal cancer susceptibility and expression pattern of FEN1 and DNA replication activity.
    A: Manhattan plot of the genetic effect at the gene level via MAGMA. The red dotted line shows the significance threshold of Bonferroni-adjusted P < 0.05. B: Regional plot for the association of rs4246215 and colorectal cancer risk derived from BBJ, GECCO, and GWAS meta-analyses. Each unique locus was defined as ± 100 kilobases (kb) on either side of rs4246215. C: Expression pattern of FEN1 and DNA replication activity of the Nanjing cohort at the RNA (top) and protein (bottom) levels. ****P < 0.0001. D: Representative multiple immunofluorescence images of FEN1 in colorectal tumors and normal tissues. Scale bar: 100 μm (upper) and 25 μm (lower), respectively. E: The average intensity of FEN1 in colorectal tumors and normal tissues. The P-value was calculated by Wilcoxon test. **P < 0.01. Abbreviation: SNPs, single nucleotide polymorphisms.
    Table  1.  Association between rs4246215 and colorectal cancer susceptibility in Asian and European populations
    VariantCHRBPReference/
    effect allele
    GenePopulationsEAFOR (95% CI)PPheterogeneityI2
    rs4246215 11 61564299 G/T FEN1 East Asian 0.393 0.92 (0.87–0.95) 1.46×10−6
    European 0.328 0.95 (0.92–0.98) 4.41×10−4
    Combined 0.94 (0.90–0.97) 4.70×10−9 0.27 0.20
    P-values of heterogeneity and meta-analysis were generated using METAL in fixed-effect inverse-variance. Abbreviations: CHR, chromosome; BP, base pair position in GRCh37/hg19; EAF, effect allele frequency; OR, odds ratio; CI, confidence interval.
     | Show Table
    DownLoad: CSV

    Functional annotation revealed that rs4246215 was located at the 3′-untranslated-region of FEN1, harboring strong functional signals of the enhancer activity, histone modification and transcription factor binding calculated by the FAVOR website (Supplementary Table 8, available online). PheWAS for pleiotropy evaluation via SAIGE UKB revealed that rs4246215 was dramatically associated with multiple phenotypes, especially in solid tumors and hematologic system tumors (Supplementary Fig. 2A, available online). Notably, both FEN1 expression (RNA level: log2FC = 0.32, P < 0.0001, Nanjing cohort; protein-level: log2FC = 0.45, P < 0.0001, Nanjing cohort) and DNA replication activity (RNA level: log2FC = 0.39, P = 1.40 × 10−19, Nanjing cohort; protein-level: log2FC = 0.34, P = 6.43 × 10−5, Nanjing cohort) were significantly increased in colorectal tumors and were positively associated with one another at both the RNA (r = 0.85, P < 2.20 × 10−16, Nanjing cohort) and protein (r = 0.72, P = 2.50 × 10−8, Nanjing cohort) levels (Fig. 3C and Supplementary Fig. 3 [available online]). Subsequent multiplex immunofluorescence staining confirmed the high expression of FEN1 in colorectal tumors (Fig. 3D and 3E).

    We then assessed infiltrating immune cells in colorectal tumors and adjacient normal tissues to determine whether FEN1 and DNA replication are involved in colorectal tumorigenesis via the immune pathway (Supplementary Fig. 4, available online). Across the five datasets, a total of 26 distinct immune cells were consistently identified, albeit some cell types being exclusively present in specific datasets (Fig. 4A). The proportions of most immune and stromal cells exhibited a decrease in colorectal tumors, but the proportions of Th1 cells, activated mast cells and M0 macrophages, showed an increase.

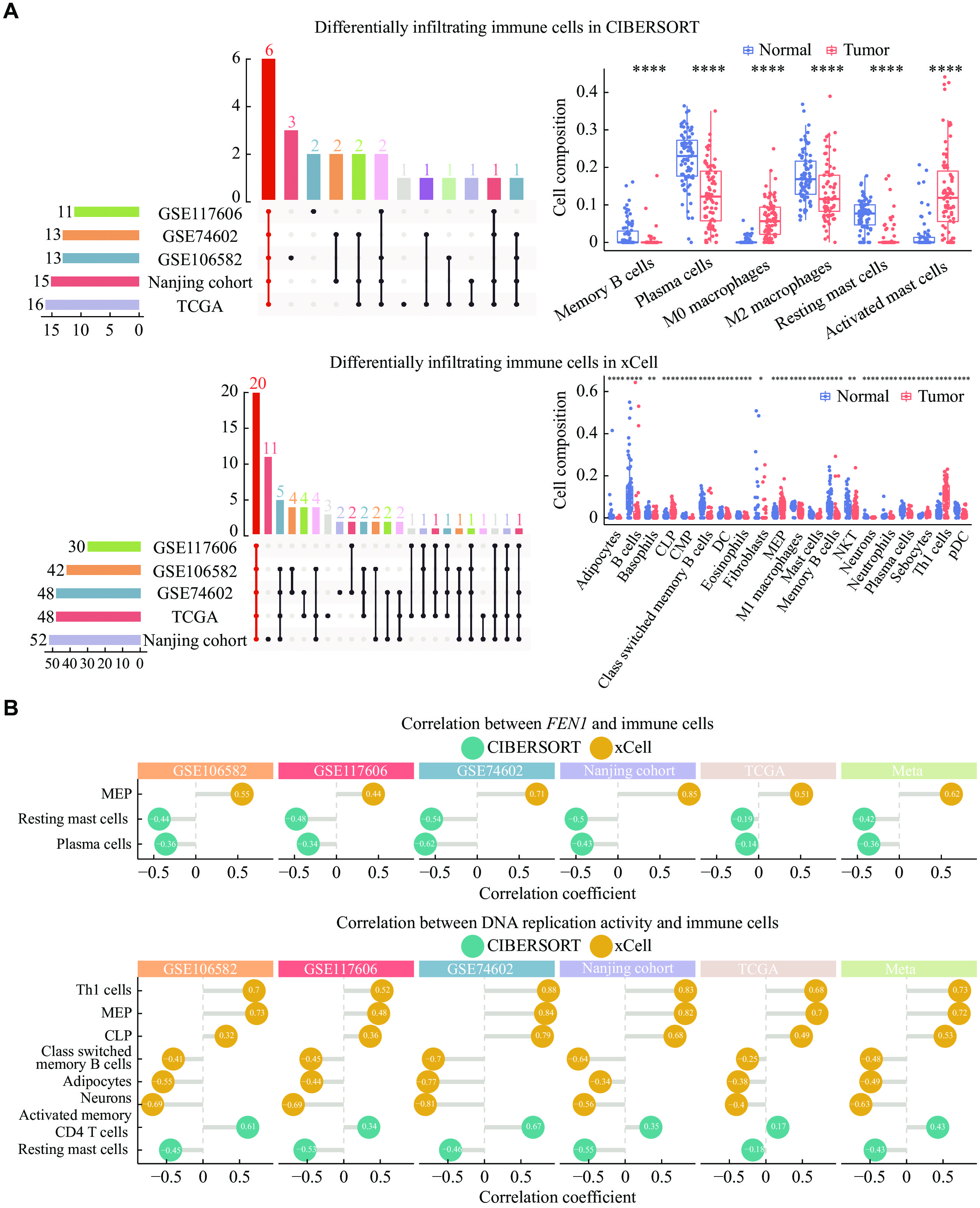

    Figure  4.  Differentially infiltrating immune cells and their correlations with FEN1 and DNA replication.
    A: Differentially infiltrating immune cells between colorectal tumors and normal tissues underlying the CIBERSORT (top) and xCell (bottom) algorithms across five datasets. *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001. B: Correlations of FEN1 expression (top) and DNA replication activity (bottom) with infiltrating immune cells. The meta value was derived by combining the results from the five datasets using a random effect model. The x-axis represents Spearman's rank correlation coefficient. Abbreviations: CLP, common lymphoid progenitors; CMP, common myeloid progenitors; DC, dendritic cells; MEP, megakaryocyte-erythroid progenitors; pDC, plasmacytoid dendritic cells.

    Furthermore, we conducted an additional analysis to determine the correlation of FEN1 expression or DNA replication activity with the infiltration of immune cells. Interestingly, the infiltration levels of three immune cell types were significantly correlated with FEN1, and those of eight immune cell types were significantly correlated with DNA replication (Fig. 4B). Resting mast cells (FEN1: rmeta = −0.42, P < 0.0001; DNA replication: rmeta = −0.43, P < 0.0001) and megakaryocyte-erythroid progenitors (MEP; FEN1: rmeta = 0.62, P < 0.0001; DNA replication: rmeta = 0.72, P < 0.0001) exhibited consistent correlation patterns with FEN1 expression and DNA replication activity.

    The eQTL mapping was conducted to confirm the targets of rs4246215. Intriguingly, we observed that rs4246215 led to a downregulation of FEN1 expression in colorectal tumors, while it conversely upregulated FEN1 expression in normal tissues (Fig. 5A). In the Genotype-Tissue Expression Project (GTEx) database, a similar trend was observed in colon tissues (βsigmoid = −0.003, P = 0.90; βtransverse = −0.004, P = 0.80), although the difference was not statistically significant. In addition, we found that rs4246215 decreased DNA replication activity in colorectal tumors but not in normal tissues (Fig. 5B) and dramatically influenced the proportions of five immune cells (i.e., basophils, CD4 Tem, eosinophils, mesangial cells, and Th2 cells; Fig. 5C and Supplementary Table 9 [available online]). However, the aforementioned trends were not significant in the Nanjing cohort (Supplementary Fig. 2B2D, available online), potentially due to the limited sample size.

    Figure  5.  Genetic effect of rs4246215 and multiplex immunofluorescence evaluation.
    A: The opposite genetic effect of rs4246215 on FEN1 in colorectal tumors (left) and normal tissues (right), TCGA dataset. Gene expression data were log2 transformed. B: Genetic effect of rs4246215 on DNA replication activity in colorectal tumors (left) and normal tissues (right), TCGA dataset. C: Genetic effect of rs4246215 on immunity (TCGA dataset). The P-value was calculated by linear regression. D: Representative multiple immunofluorescence images of CD3, CD22 and CD45 in colorectal tumors and normal tissues. Scale bar: 100 μm for the first and third rows and 25 μm for the second and forth rows, respectively. E: The average intensity of CD3, CD22 and CD45 in colorectal tumors and normal tissues. The P-value was calculated by the Wilcoxon test. *P < 0.05 and **P < 0.01. Abbreviations: TCGA, The Cancer Genome Atlas; Tem, effector memory T cells.

    Subsequently, we performed multiplex immunofluorescence to visualize the colocalized biomarkers in the aforementioned immune cells (basophils, eosinophils and T cells) in the tumor immune microenvironment. Representative immunofluorescence staining of basophils, eosinophils and T cells, represented by CD22+, CD45+ and CD3+ staining, is shown in Fig. 5D. In accordance with the immune infiltration analysis, the average levels of basophils (CD22+) and eosinophils (CD45+) infiltration in colorectal tumors were significantly lower than those in normal colorectal tissues (P = 0.017 and P = 0.003, respectively), but the difference in T cell (CD3+) infiltration levels was not statistically significant (Fig. 5E).

    We hypothesized that DNA replication and FEN1 could act as mediators to influence the effect of rs4246215 on the immunity (Fig. 6). Upon the causal mediation analysis, we observed five significant indirect pathways, by which rs4246215 affects the immunity; both FEN1 and DNA replication mediated the positive indirect effects of rs4246215 on CD4 Tem (FEN1: βindirect = 0.0002, P = 0.016, 12.78% effects mediated; DNA replication: βindirect = 0.0002, P = 0.016, 16.23% effects mediated), eosinophils (FEN1: βindirect = 0.0003, P = 0.004, 21.42% effects mediated; DNA replication: βindirect = 0.0004, P = 0.016, 24.83% effects mediated) and mesangial cells (FEN1: βindirect = 0.0003, P = 0.012, 18.38% effects mediated; DNA replication: βindirect = 0.0006, P = 0.036, 38.45% effects mediated), whereas they exerted negative indirect effects on basophils (FEN1: βindirect = −0.0008, P = 0.024; DNA replication: βindirect = −0.0008, P = 0.036) and Th2 cells (FEN1: βindirect = −0.0045, P = 0.004, 56.40% effects mediated; DNA replication: βindirect = −0.0048, P = 0.016, 60.95% effects mediated).

    Figure  6.  Causal mediation analysis between rs4246215 and immune cells mediated by FEN1 and DNA replication.
    A: A schematic diagram of mediation analysis. B–F: Detailed results for mediation analysis. Abbreviations: IE, indirect effect; TE, total effect; Tem, effector memory T cells.

    In the current study, we investigated the potential causal protective locus rs4246215 G>T in FEN1, a locus associated with DNA replication, and its effect on the colorectal tumor immune microenvironment involved in tumorigenesis.

    Obstacles that impede DNA replication can lead to DNA replication stress, a phenomenon causing genetic mutations and instability[43]. Chronic DNA replication stress is a hallmark of cancer cells, which provides a potential therapeutic target for cancer treatment[44]. Our findings highlight the significance of DNA replication in colorectal cancer and its potential as a therapeutic target. FEN1, a member of the DNA replication pathway, is also involved in other DNA metabolic pathways, including telomere stability maintenance and apoptotic DNA fragmentation[4546]. In vivo and in vitro studies have demonstrated that FEN1 is frequently overexpressed in various cancers, such as breast cancer, glioma, and hepatocellular cancer, and that its upregulation promotes tumorigenesis and cancer progression[4750]. Additionally, FEN1 overexpression can lead to genome instability and impair DNA replication through its interaction with PCNA[51]. We observed consistent FEN1 overexpression in colorectal tumors at both the RNA and protein levels, suggesting that FEN1 may serve as a promising biomarker for the diagnosis of colorectal cancer.

    Previous studies have reported an association between rs4246215 and risk of various solid tumors, including cancers of lung, breast, and colorectum[52]. The current study adds to the existing knowledge by demonstrating the functional implications of rs4246215 in colorectal tumor immune microenvironment. Future investigation is warranted to elucidate functional implications of other potential SNPs and their interplay with rs4246215, to provide a better understanding of the genetic mechanisms underlying colorectal cancer pathagenesis.

    Tumor immune microenvironment consists of tumor cells and various non-tumor cells and plays a critical role in tumor initiation, progression, and response to therapy[53]. In the current study, we employed the CIBERSORT and xCell algorithms to investigate the differential infiltration of immune cells in colorectal tumors, compared with normal tissues. Our results indicated that macrophages, B cells, and mast cells were differentially infiltrated in colorectal tumors. Macrophages, including M1 and M2 polarized macrophages, have been identified as potential immunotherapeutic targets[5455]. B cells are significant prognostic factors for cancer, although the mechanisms underlying their immune-suppressive or immune-supportive effects remain poorly understood[5659]. In addition, little is known about B cells as a new target for immunotherapy[6061]. Meanwhile, the role of mast cell in the tumor immune microenvironment remains controversial, with contradictory results from different studies[62]. These findings highlight the potential of macrophages and B cells as immunotherapeutic targets and underscore the need for further research to elucidate their precise roles in immunotherapy of colorectal cancer.

    Recent studies have demonstrated that targeting DNA replication stress can modulate the immune microenvironment and improve immunotherapy efficacy[63]. The current study contributes to this knowledge by revealing the intricate interplay among genetic variants, DNA replication, and the tumor immune microenvironment in colorectal cancer development. Investigating genetic variants that influence the infiltration of immune cells at the genomic level may provide new insights into the regulation of immune microenvironments and facilitate the development of novel immunotherapeutic strategies.

    Multiplex immunofluorescence is a powerful tool to study the spatial tumor immune microenvironment of limited tissue specimens, which improves the understanding of tumor-immune interactions[6465]. We validated our bioinformatic findings by using multiplex immunofluorescence to quantify immune cells and DNA replication activity in colorectal tumor and normal tissues at the protein level. Our results confirmed the spatial distribution of immune cells and tumor cells, and revealed differential infiltration of basophils, eosinophils, and FEN1 in colorectal tumors, compared with normal tissues. However, further studies are needed to better characterize other immune cell components in the colorectal tumor immune microenvironment.

    It is important to acknowledge the limitations of the current study. We did not conduct in vitro and in vivo experiments to validate the differentially expressed genes found in the tumors and immune cell components. Future experiments should investigate immune-mediated cytotoxicity as a crucial mechanism in the tumor microenvironment. Additionally, the sample size of the cohort used to validate the data from public datasets was relatively small. Large-scale omics datasets are needed to confirm our results. Moreover, the current study focused on one SNP locus, and future studies should investigate other potential SNPs and their effects on immune microenvironment.

    In summary, the current study uncovers the functional involvement of FEN1 in colorectal cancer susceptibility through the DNA replication process and highlights the effect of the causal variant rs4246215 G>T on the colorectal tumor immune microenvironment. The current study contributes to the understanding of the pathogenesis of colorectal cancer and sheds light on the "SNP-gene/pathway-immunity" scheme that may have implications for clinical practice.

    This study was partly supported by the National Natural Science Foundation of China (Grant No. 82173601) and Yili & Jiangsu Joint Institute of Health (Grant No. yl2021ms02).

    We thank the participants who generously gave their help in the study. We also thank the Genetics and Epidemiology of Colorectal Cancer Consortium and Biobank Japan for providing European and East Asian colorectal cancer GWAS data.

    CLC number: R735.3, Document code: A

    The authors reported no conflict of interests.
